FQ QUICK JAW CHANGE CHUCK

Brand Name : NTH

Model Number : FQ-08A6,FQ-10A8,FQ-12A8

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets/M

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : FQ Quick Jaw Change Chuck

Material : Forged steel

Usage : Gripping/Fixture

Feature : High precision/High quality

Size : Refer to the specification

Service : OEM/ODM is acceptable

Contact Now

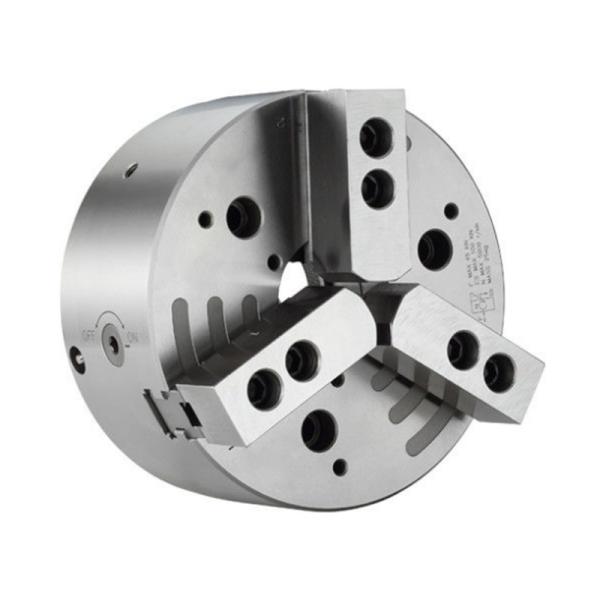

FQ Quick Jaw Change Chuck

Brand:NTH

shortest time for changing soft jaw,and high repeatability precision.
The chuck body and all parts are hardened and ground, it can be lubricated directly.
high rigidity construction and high clamping accuracy.
For safety system that master jaw will complete return when base jaw and serration match up properly.
FQ QUICK JAW CHANGE CHUCK

Spec
Model		 Plunger stroke
mm		 Jaw stroke Dia.
mm		 Max chucking Dia.
mm		 Min chucking Dia.
mm

Max.D.B.

Pull

kgf

 Max clamping force
kgf
FQ-08A6 16 7.5 210 23 45.0(4590) 100(10200)
FQ-10A8 19 8.8 254 41 60.0(6118) 135(13765)
FQ-12A8 23 10.6 315 47 81.0(8259) 180(18354)

Spec
Model		 Max RPM I
kg*m2		 Weight
kg		 Weight(Ad.)
kg

Matched

cylinders

 Max pressure
Mpa(kgf/cm2)
FQ-08A6 5000 0.15 24.5 26 H-1778 3.1(31)
FQ-10A8 4500 0.41 44 46 H-2085 2.8(28)
FQ-12A8 3500 0.96 73 75 H-2511 2.4(25)

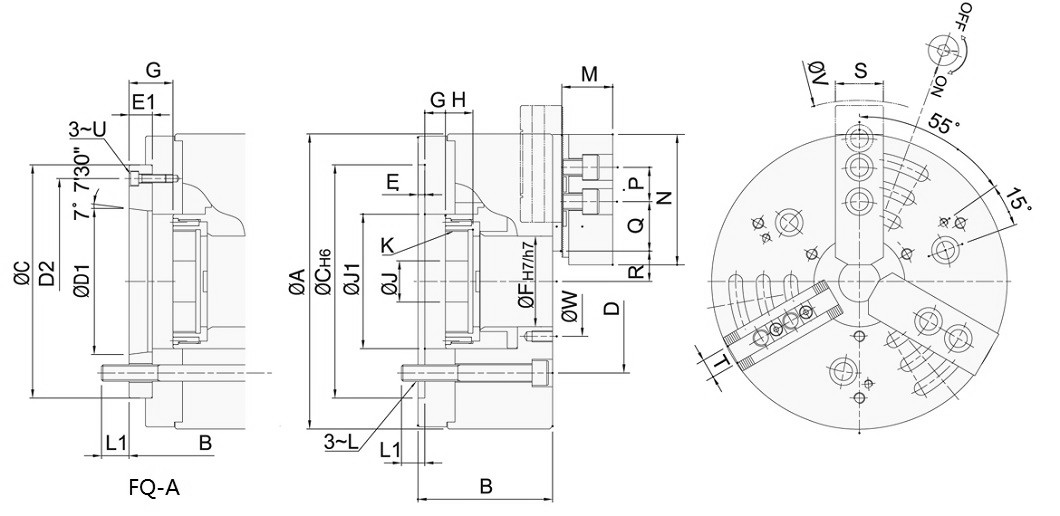

Spec

Model

 A B B C D D1 D2 E E1 F Gmax Gmax Gmin Gmin H J
FQ-08A6 215 98 110 170 133.4 106.38 150 5 17 66 14.5 32 -1.5 15.5 20 30
FQ-10A8 254 119 132 220 171.4 139.72 190 5 18 81 8.5 26.5 -10.5 7.5 39 45
FQ-12A8 315 133 145 220 171.4 139.72 190 6 18 106 8.5 26.5 -14.5 3.5 42 50

Spec
Model		 J1 K max L L1 L1 M N P Q R max R min S T U V W
FQ-08A6 98 M75×2 M12 17 20 37 95 25 36 20.8~44.8 17.1~41.1 35 14 M6 264 80
FQ-10A8 115 M90×2 M16 23 25 42 110 30 40.5 21.1~52.8 16.7~48.2 40 16 M8 312 100
FQ-12A8 140 M115×2 M16 22 24 50 111 30 57 34.1~70.1 28.8~64.8 50 21 M8 360 130

Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:

FQ Series.pdf
